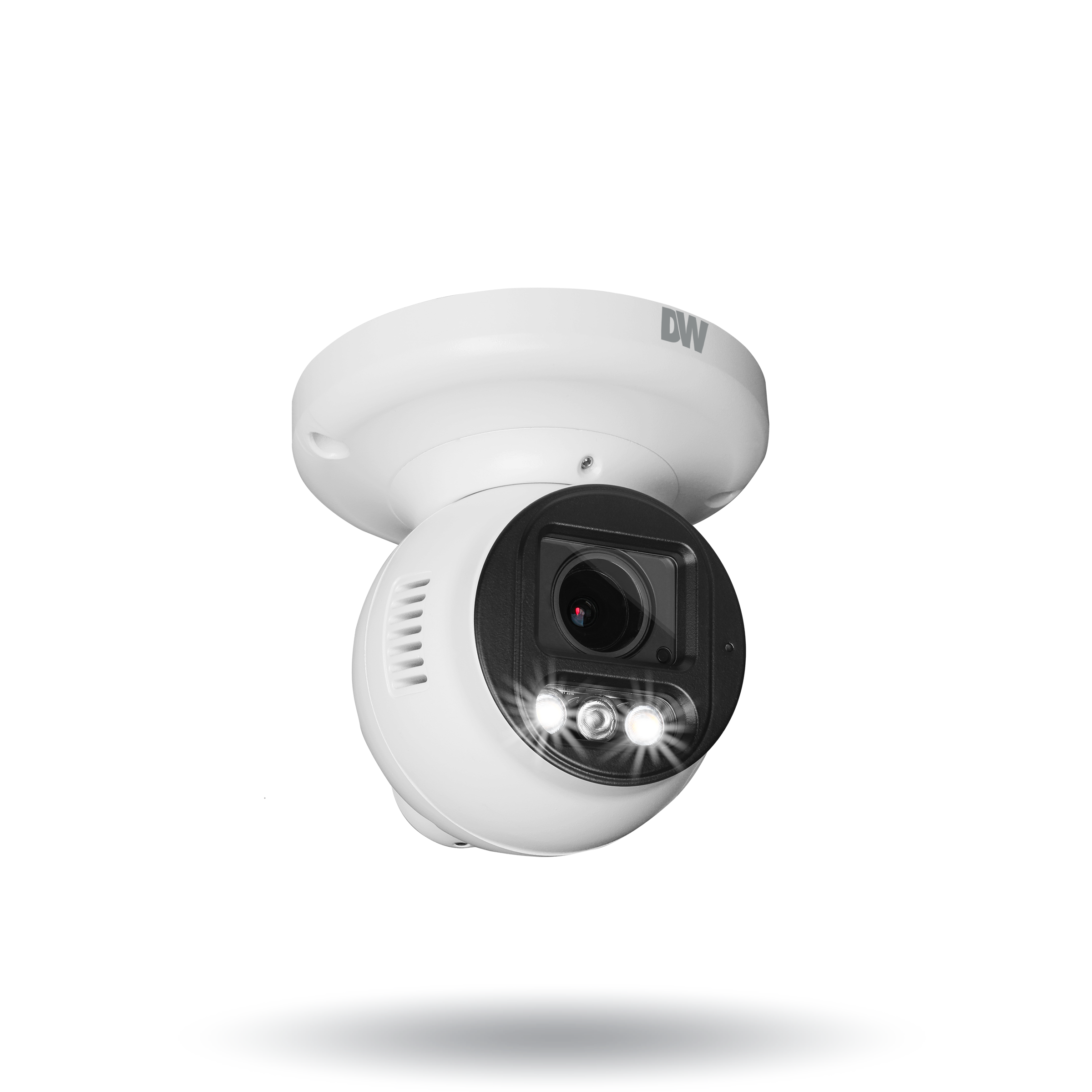

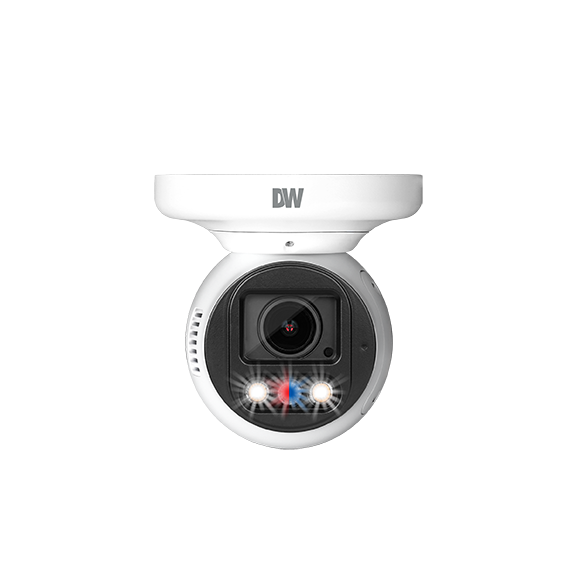

DWC-XSTD05MFQ

DWC-XSTD05MFQ is a 5MP AI-powered turret IP camera with built-in QR code reading for instant asset tracking and visual verification. It delivers vivid low-light color with Star-Light Plus™, motorized zoom, and seamless DW Spectrum® integration—ideal for smart logistics, retail, and secure environments.
Features
  • Built-In QR Code Reader with LED Confirmation – Detects and registers QR codes in the field of view, with green LED visual verification for instant confirmation. Ideal for access control, inventory tracking, and smart facility management.
  • 5MP STAR-LIGHT PLUS™ Imaging - Delivers exceptional low-light performance with vivid color detail, ensuring reliable surveillance even in near-total darkness.
  • Motorized Varifocal Lens - Offers flexible zoom and focus control remotely, allowing users to adjust the field of view without manual intervention.
  • AI-Powered Analytics - Supports intelligent event detection, object classification, and behavior analysis for proactive security monitoring.
  • Smart IR™ Illumination - Automatically adjusts infrared intensity based on object distance, preventing overexposure and enhancing nighttime clarity.
  • Cloud-Centric Management - Seamlessly integrates with DW Spectrum® for centralized video management, remote access, and scalable deployment.

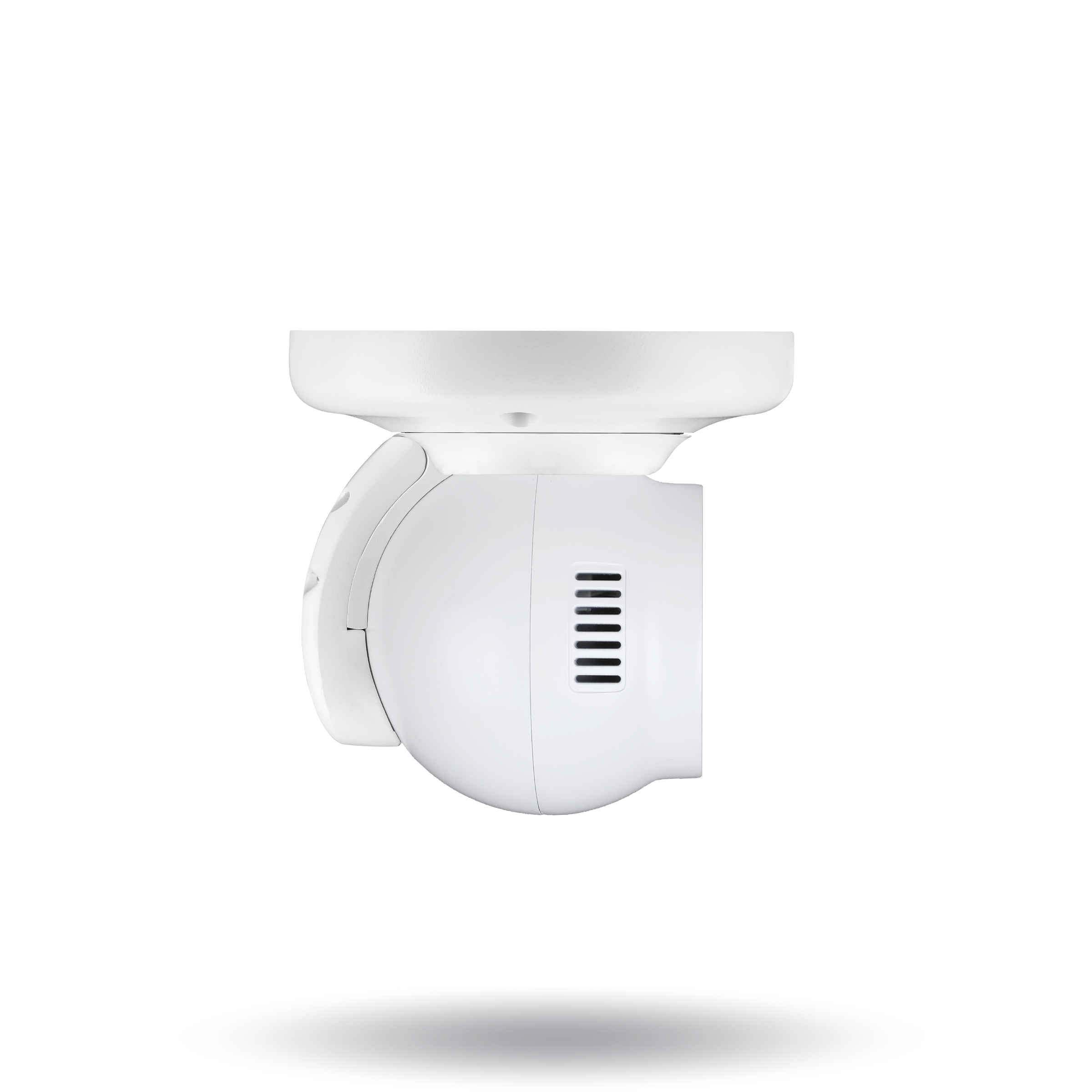

  • Durable Turret Form Factor - Vandal-resistant and weatherproof design with a ball-and-socket joint for flexible installation in indoor or outdoor environments.
  • Low Total Cost of Ownership - Combines advanced features with reliable performance and minimal maintenance, reducing long-term operational costs.
  • NDAA/TAA Compliance - Fully compliant with U.S. government procurement standards, making it suitable for federal, state, and municipal deployments.
  • Industry-Leading Warranty - Backed by a 5-year warranty, offering long-term reliability and peace of mind for customers and integrators.

Learn about how DW
solutions can work for you

View All Markets

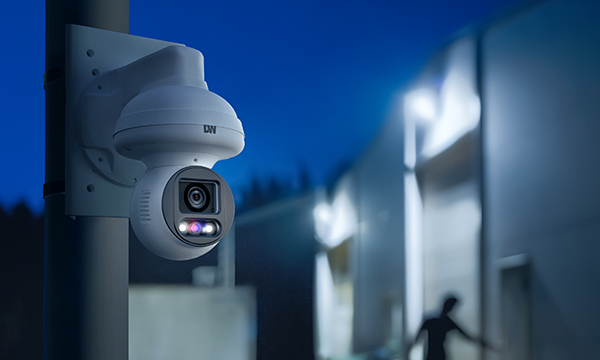

Ultimate all-in-one deterrent solution

DW’s turret cameras come with white light LEDs, flashing alarm lights and built in speaker and microphone, making the camera an ideal complete solution, deterring crime and recording evidence.

QR Code Reader Plugin

QR code reader detects QR codes in the camera's FoV and registers the code's text with green LED visual verification.

Deep Learning

DW’s Ai intelligent algorithms offer deep learning with better object detection and identification of environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. Allowing only valid events to filter through increases efficiency and productivity, and reduces unnecessary costs.

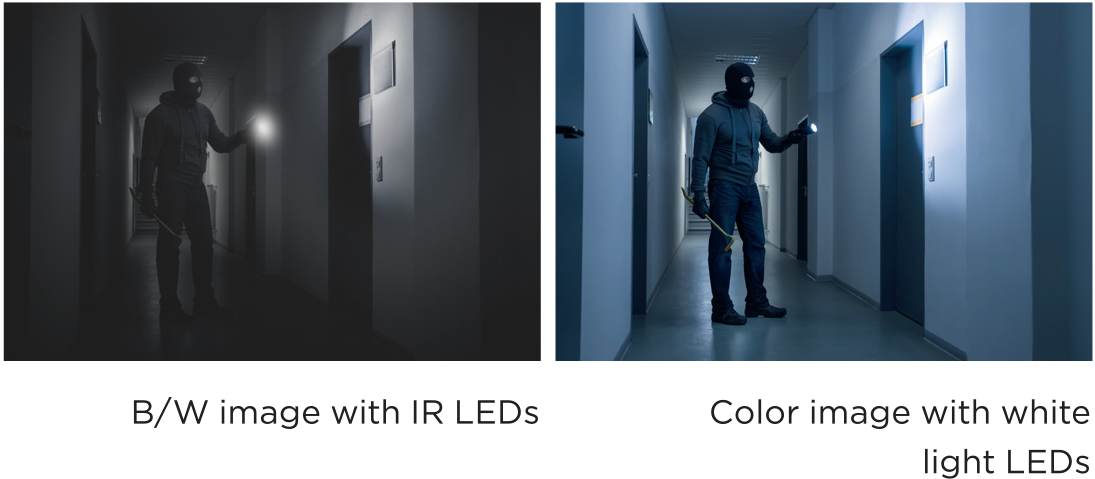

White light LEDs built-in

Create deterrence and provide crystal-clear images in color without the need for external illumination or the potential loss of color and detail from B/W images.

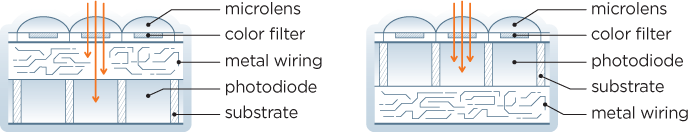

Back-Illuminated Sensor (BIS) Technology

Backside-illumination technology flips the position of the pixels and the circuitry to collect the light from the sensor's backside. This improves light capture from 60% to over 90%.

Learn More.

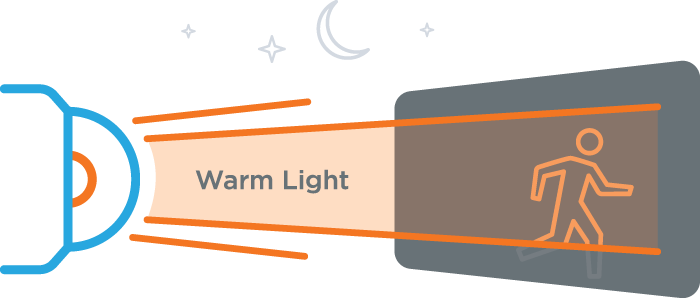

Environmentally-Friendly Warm Light

The 3300 Kelvin warm White-Light provides ample lighting with no need for other sources of illumination. The warm White-Light is environmentally friendly, with minimal light pollution for residential areas while maintaining true color with no harsh discoloration in color images.

Learn More.

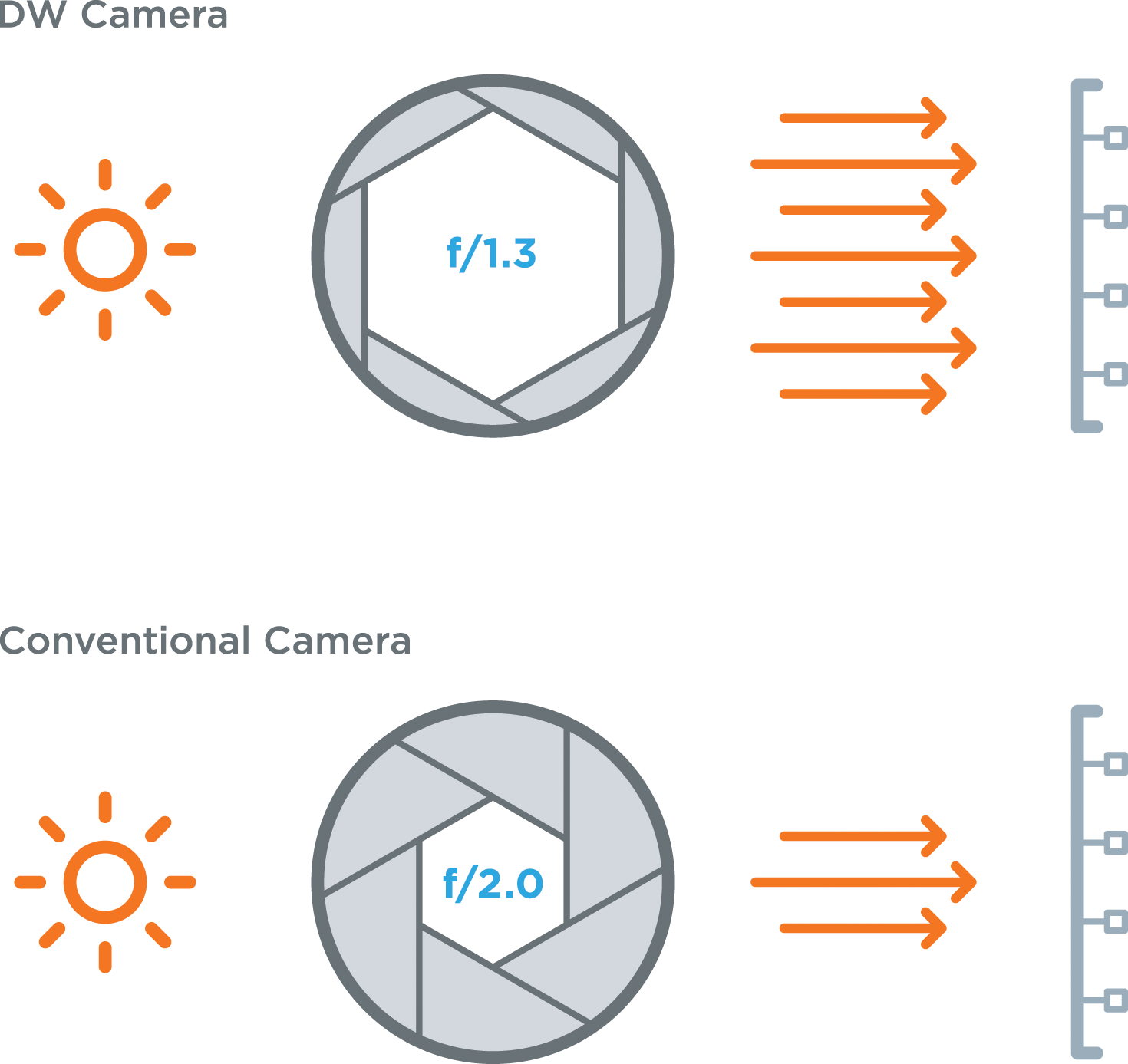

F1.3 Super Aperture Lens

The camera’s lens has an F1.3 wider-than-average aperture, allowing more the amount of light to enter the lens (compared to an F2.0 lens), resulting in brighter images.

Learn More.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

Ambarella CV22 and CV25 chips with CVflow®

Ambarella’s CV22 and CV25 chips combine image processing, real-time 30fps 4K and 5MP video encoding and CVflow® architecture to provide the deep neural network (DNN) processing required for the next generation of intelligent IP cameras.

Ai Analytics and deep learning

DW Ai solutions include all the Intelligent Video Analytics and advanced Video Content Analysis detection capabilities of the Ai engine. In addition, Ai servers empower users with deep learning objects and people tracking and color filters.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Specifications

Color temperature Warm light
3300K
WL wavelength (lumen) 200lm
Active Pixels 2592 (H) x 1944 (V)
Frequency 50Hz
Image sensor 5MP 1/2.8" CMOS sensor
Star-Light Plus™ sensor
Maximum resolution 5MP
Minimum Scene Illumination in color 0 lux (white light)
0.0 lux (B/W)
0.07 lux (color)
Total Pixels 2608(H) X 1984(V)
Lens
Advanced Lens Features Auto focus
Motorized zoom
P-iris
Focal Length 2.7 - 12mm
Horizontal Field of View (HFOV) 89.9° - 31.5°
Lens Type Vari-focal Lens
Vertical Field of View (VFOV) 64.5° - 23.6°
White Light Distance 90' range white light
I/O
Audio compression G.711 ulaw
Event triggers Illegal login
Motion Alarm
Network disconnection
Sensor detection
Temperature anomaly
I/O Alarm in/out 1 input
1 output
I/O Audio in/out 1 microphone built-in
1 speaker built-in
Intelligent Video Analytics
Advanced video analytics AI-based object tracking
Analytics filters Zones and lines, tamper, metadata, intrusion, line crossing, counting, counting lines, appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Day and night Day (color)
De-fog Yes
Memory slot Micro SD/SDHC/SDXC class 10 card (card not included)
Up to 1TB micro SD / FAT32
Mirror/flip Yes
Motion Detection Yes
Operational Notifications Alarm output activation
Email
FTP server
SD card recording
Privacy Zones 16 programmable privacy masks
QR code reader QR code support for logistics and warehouse management
Sharpness Yes
Shutter Mode Anti-Flicker
Auto
Manual
Slow Shutter
Shutter Speed 1/15 ~ 1/32000
Slow Shutter Speed Off
x10
x2
x3
x5
x6
x7.5
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Network
Bitrate Control Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
IP IPv4
LAN RJ45 (10/100Base-T)
Network resolution H.264: 2592x1944, 2560x1440, 1920x1080, 1280x720, 800x600, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240
H.265: 2592x1944, 2560x1440, 1920x1080, 1280x720, 800x600, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240
MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240
Network Web Viewer Google Chrome® browser
Linux® OS
Mac® OS
Microsoft Edge® browser
Mozilla Firefox® browser
Safari® browser
Windows OS
Protocol DDNS
DHCP
DNS
FTP
HTTP
HTTPs
ICMP
NTP
ONVIF
RTP (UDP/TCP)
RTSP
SMTP
SNMPv1/v2/v3 (MIB-2)
SSL
TCP/IP
UDP
Zeroconf (AutoIP)
Security 802.1x
Digest authentication (ID/PW)
HTTPS (TLS)
IP filtering
Stream Speed Up to 30fps at all resolutions
Streaming Capability Triple Streaming (3rd stream MJPEG only)
Video Bitrate 100Kbps ~ 25Mbps, multi-rate for preview and recording
Video Compression Type H.264
H.265
MJPEG
Video Management Software Any ONVIF conformant CMS
DW Spectrum®
Environmental
Compliance CE  FCC  NDAA Comp  ONVIF  TAA Compliance  UL Listing
Environmental Operating Humidity 10-90% (non-condensing)
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional) Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D) 4.92" x 4.79" (125 x 121.7 mm)
Camera Weight 1.94 lbs (0.88 kg)
Housing Vandal ball turret
Turret
Housing Color White
IK rating IK10 Rated
IP rating Weather Resistant (IP67)
Materials Aluminum die-casting
Electrical
American wire gauge (AWG) 30M
Cable type #18
Power Consumption DC12V: 10.2W, 850mA
PoE: 12.5W, 260mA
Power Requirements 12V DC
Adapter not included
PoE
General
Warranty 5 Year Warranty

Accessories

DWS-ENT12M1C
DWS-ENT12M1C DW Spectrum Enterprise VSaaS Scalable Cloud Video Surveillance Digital Watchdog
Learn more
DWS-myDW12M1C
DWS-myDW12M1C myDW Surveillance Health Monitoring | Cloud-Based System Alerts & Clip Sharing – Digital Watchdog
Learn more
DWC-GPLT-W
DWC-GPLT-W Converter Plate – White Gang Box Adapter | Digital Watchdog
Learn more
DWC-PMB-WLW
DWC-PMB-WLW Pole Mount Bracket – White | Durable Outdoor Camera Mounting Solution
Learn more
DWC-V1CNMW
DWC-V1CNMW Corner & Pole Mount Bracket – White | Versatile Security Mounting Solution
Learn more
DWC-VACM
DWC-VACM | White Ceiling Mount Bracket for Vandal Ball Turret Cameras
Learn more
DWC-VAJUNC
DWC-VAJUNC | White Junction Box for Vandal Ball Turret Cameras
Learn more

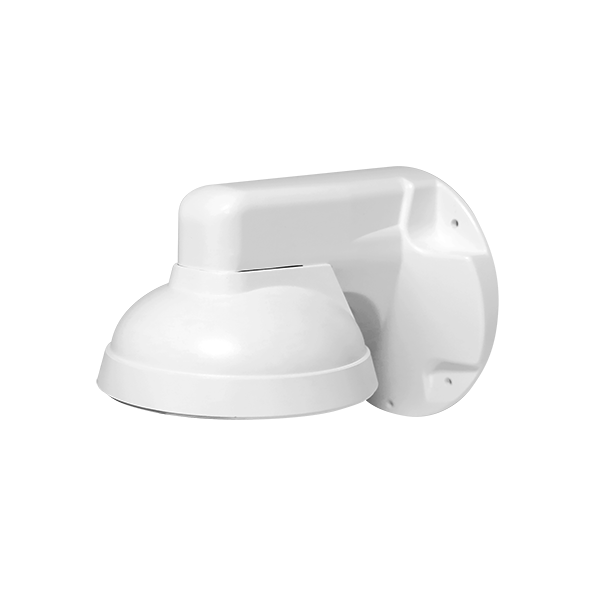

DWC-VAWM
DWC-VAWM | White Wall Mount Bracket for Vandal Ball Turret Cameras
Learn more

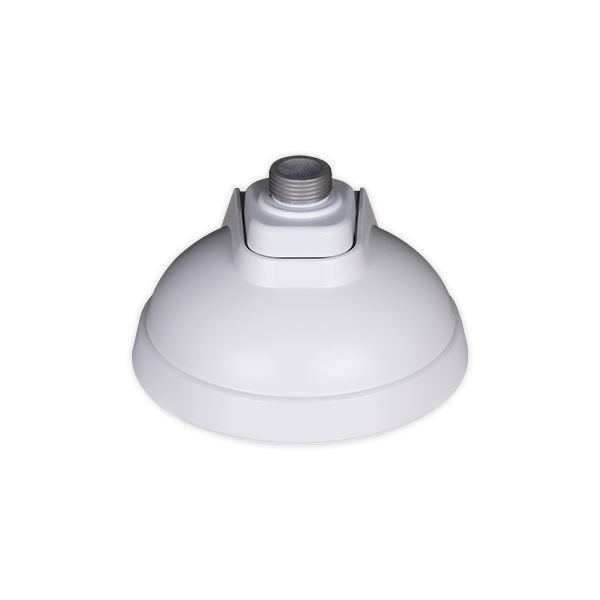

DWC-VFHMW
