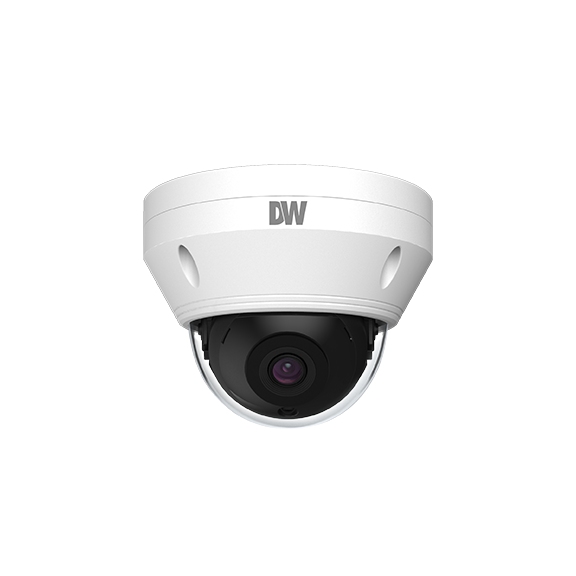

DWC-VSDG04Bi

DWC-VSDG04Bi MEGApix® 4MP Dome Camera offers real-time 30fps video with True WDR, Smart DNR™, and 100' Smart IR™ for clear imaging in any light. Its 2.8mm lens, built-in analytics, audio, and SD recording deliver smart functionality. With IP67/IK10 housing, NDAA compliance, PoE/DC12V support, and ONVIF integration, it’s a reliable, high-performance solution backed by a 5-year warranty.  (Not eligible for DW Double Down )
Features
  • High-Resolution Imaging - Capture crisp, detailed footage with a 4MP CMOS sensor delivering real-time 30fps video—ideal for identifying critical details in surveillance environments.
  • Wide-Angle Fixed Lens - Equipped with a 2.8mm fixed lens, the camera offers a broad field of view for optimal area coverage—perfect for monitoring entrances, hallways, and open spaces without the need for manual zoom or repositioning.
  • True Wide Dynamic Range (WDR) - Ensure balanced exposure in challenging lighting conditions, such as bright sunlight and deep shadows, for consistently clear and usable video footage.
  • Smart IR™ Night Vision - Monitor in complete darkness with Smart IR™ technology that provides up to 100 feet of infrared illumination without overexposure or loss of detail.
  • Rugged Outdoor Protection - Built to last with IP67 weatherproof and IK10 vandal-resistant housing, this camera withstands harsh environments and physical tampering.
  • Advanced Video Analytics - Enhance security with built-in analytics like line crossing, intrusion detection, and tamper alerts—reducing false alarms and improving response accuracy.
  • Flexible Power Options - Simplify installation with support for both PoE and DC12V power, allowing for versatile deployment across various infrastructure setups.
  • Audio Integration - Improve situational awareness with a built-in microphone and audio input, enabling real-time audio capture alongside video surveillance.
  • Seamless System Integration - ONVIF compliance and multiple streaming codecs ensure compatibility with existing VMS platforms and easy integration into current systems.
  • NDAA Compliance & Warranty - Offer peace of mind with NDAA compliance for government use and a 5-year warranty backed by Digital Watchdog’s trusted support.

Learn about how DW
solutions can work for you

View All Markets

Line crossing

Once a pre-defined line is crossed from either direction, an event notification will be sent.

Perimeter intrusion

Once a pre-defined area is set, any crossing of the lines towards the area, out of the area, or both, will trigger an alarm.

Video tampering detection – abnormal color detection

When the camera’s color reproduction is changed, an event notification will be sent.

Video tampering detection – scene change

When the camera is moved, and the Field of View (FoV) is different, an event notification will be sent.

Video tampering detection – video blur

When a sudden blur or loss in visibility is detected, an event notification will be sent.

Smart IR™

Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

H.265 codec support

High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.

Specifications

Image sensor 4MP 1/3" CMOS sensor (x4)
Maximum resolution 4MP
Minimum Scene Illumination in color 0.0 lux (B/W)
0.005 lux (color)
Total Pixels 2560 (H) x 1440 (V)
Lens
Focal Length 2.8mm
Horizontal Field of View (HFOV) 94°
Illumination Distance 100' range Smart IR™
Lens Type Fixed Lens
Vertical Field of View (VFOV) 50°
I/O
Audio compression G.711A / U
I/O Audio in/out *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended.
1 input
1 microphone built-in
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Camera Analytics Line Crossing
Perimeter Intrusion
video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection)
Day and night Auto day/night
Day (color)
Night (B/W)
De-fog Yes
Memory slot Micro SD/SDHC/SDXC class 10 card (card not included)
Up to 1TB micro SD / FAT32
Mirror/flip Yes
Motion Detection Yes
Operational Notifications Email
FTP server
Privacy Zones 8 programmable privacy masks
Sharpness Yes
Shutter Mode Auto
Manual
Shutter Speed 1/30 ~ 1/100000
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Network
Bitrate Control Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP IPv4
IPv6
LAN 802.3 compliance 10/100 LAN
Network resolution 4MP, 3MP,2.1MP/1080P, 720P, D1, 480×240, CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Network Web Viewer Microsoft Edge® browser
Windows OS
Protocol 802.1x
FTP
HTTP
HTTPs
ICMP
IGMP
NTP
ONVIF
PPPoE
QoS
RTCP
RTP
SMTP
SNMP
UDP
Security Digest authentication (ID/PW)
IP filtering
MAC filtering
Stream Speed Up to 30fps at all resolutions
Streaming Capability Dual-stream at different rates and resolutions
Video Bitrate 64Kbps~8Mbps
Video Compression Type H.264
H.265
MJPEG
Video Management Software Any ONVIF conformant CMS
DW Spectrum®
Environmental
Compliance CE  FCC  NDAA Comp  ONVIF
Environmental Operating Humidity 0-95% RH (non–condensing)
Environmental Operating Temperature -22°F ~ 140°F (-30°C ~ 60°C)
Mounting Accessories (Required/Optional) Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D) 4.59" x 3.54" (116.6x 90 mm)
Camera Weight 1.43 lbs (0.65 kg)
Housing Vandal Dome
IK rating IK10 Rated
IP rating Weather Resistant (IP67)
Materials Aluminum die-casting
Electrical
Power Consumption DC12V: max 4.5W, 375mA
PoE: max 4.5W
Power Requirements Adapter not included
PoE
General
Warranty 5 Year Warranty

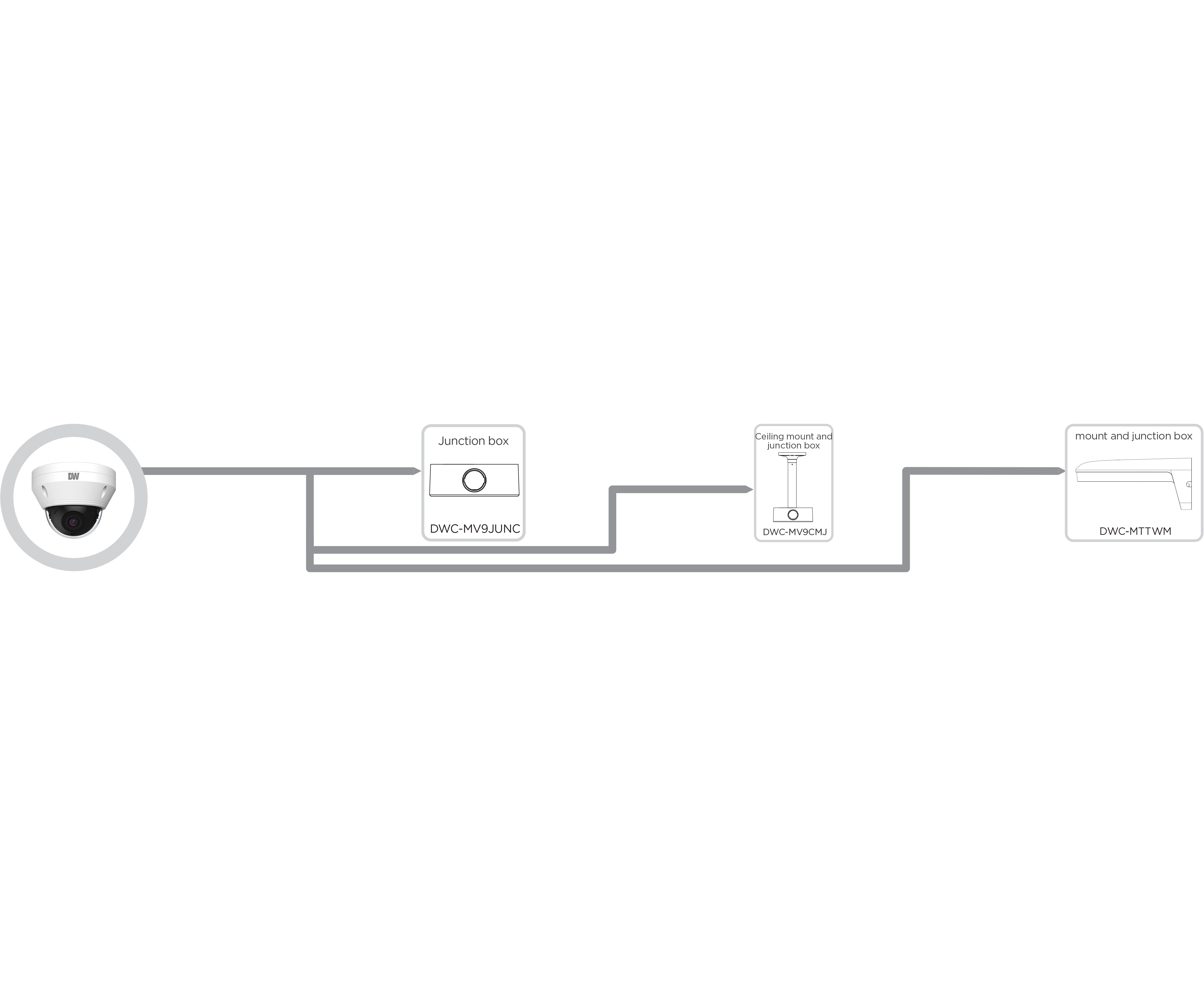

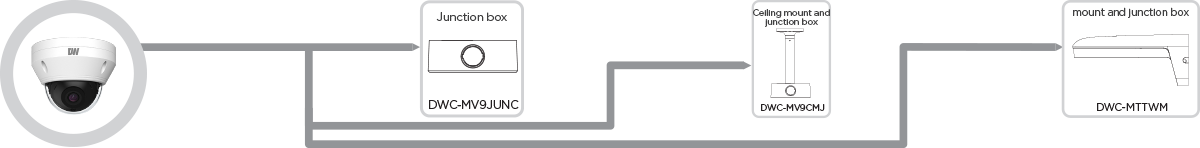

Accessories

DWS-ENT12M1C
DWS-ENT12M1C DW Spectrum Enterprise VSaaS Scalable Cloud Video Surveillance Digital Watchdog
Learn more
DWS-myDW12M1C
DWS-myDW12M1C myDW Surveillance Health Monitoring | Cloud-Based System Alerts & Clip Sharing – Digital Watchdog
Learn more
DW-POEEX2
DW-POEEX2 | 2-Port Gigabit Waterproof PoE Splitter & Extender | Digital Watchdog
Learn more
DW-SWSP30AM
DW-SWSP30M Smart Warning Speaker | Real-Time Audio Alerts for Proactive Security
Learn more

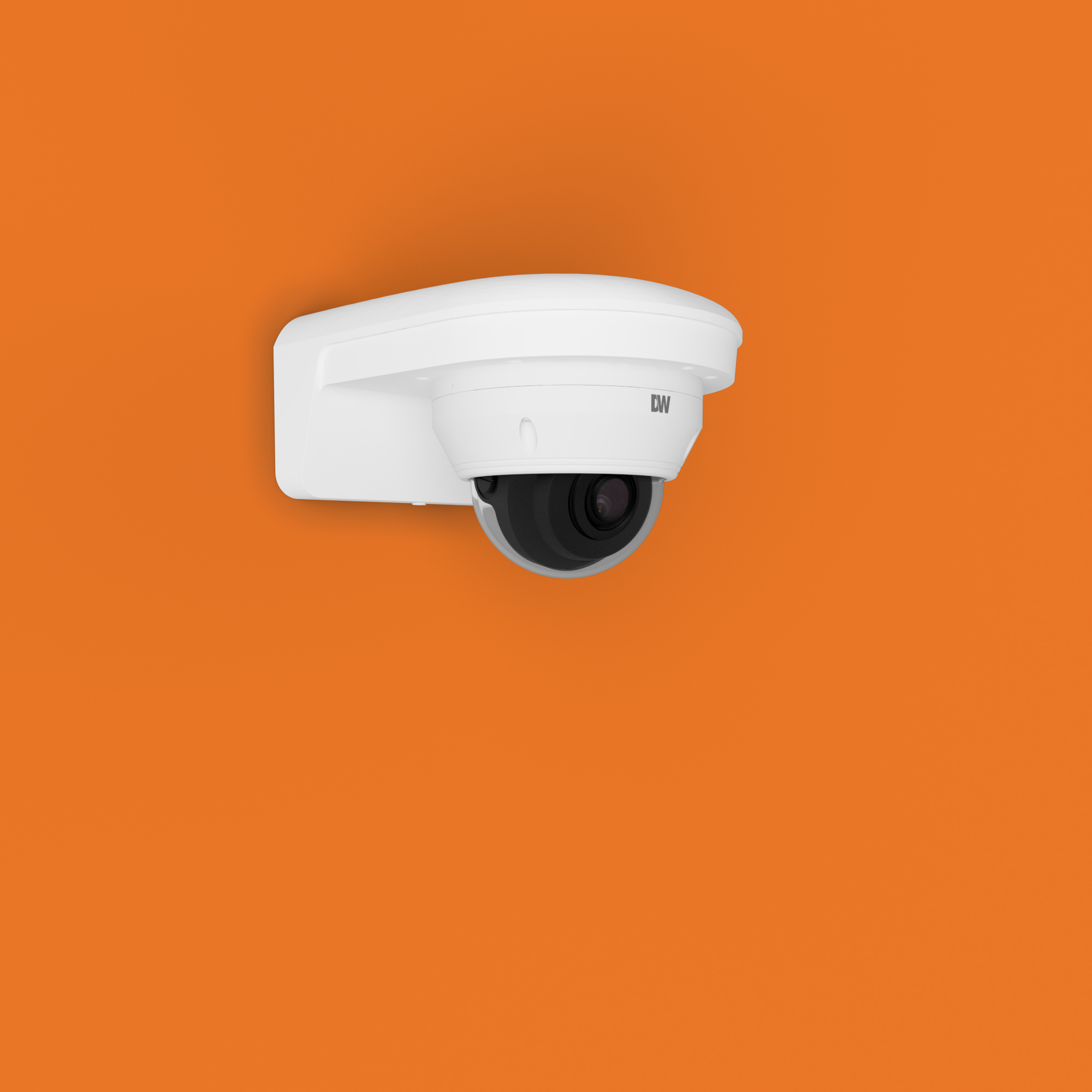

DWC-MTTWM
DWC-MTTWM Wall Mount – White Bracket for Fixed Lens Turret Cameras | Digital Watchdog
Learn more

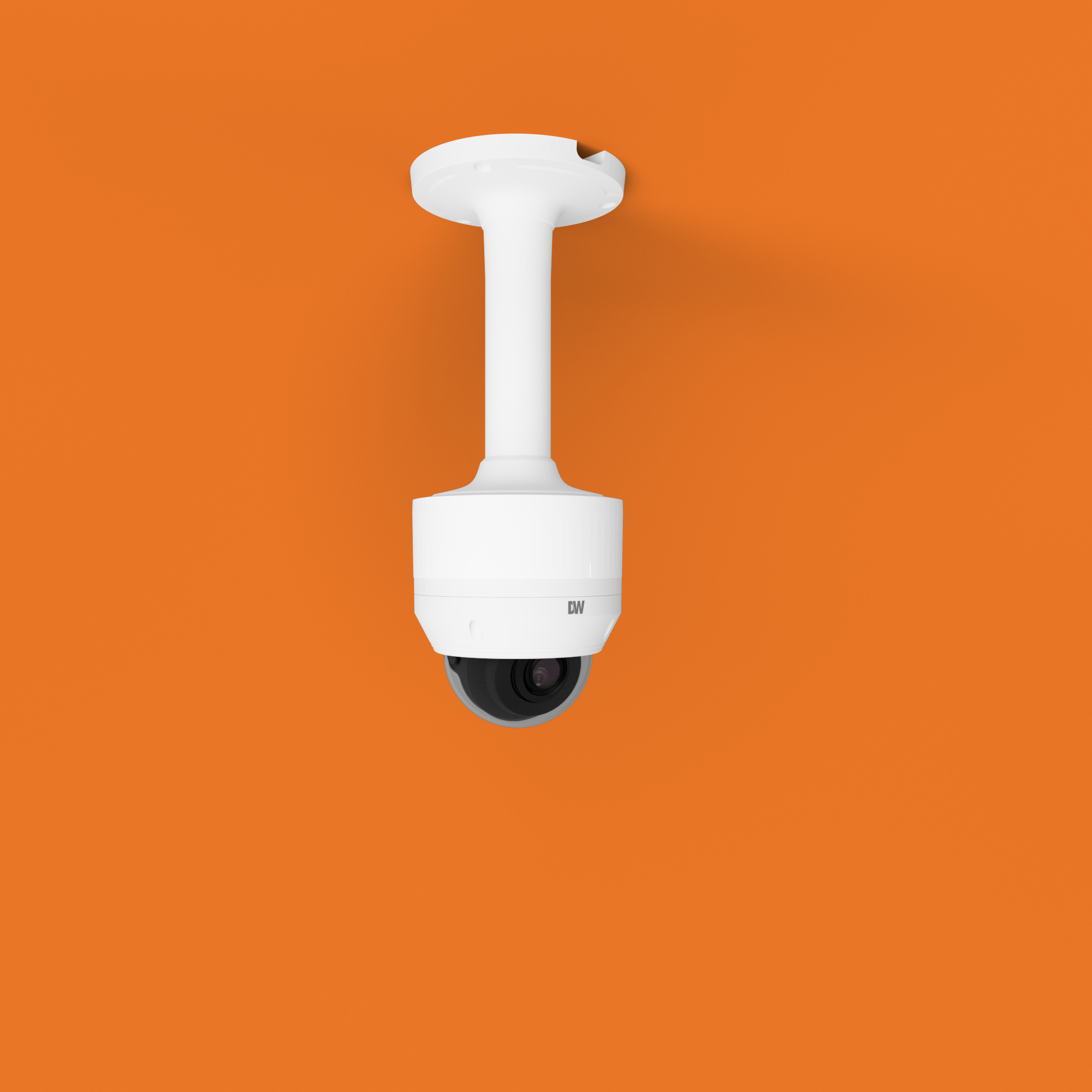

DWC-MV9CMJ
