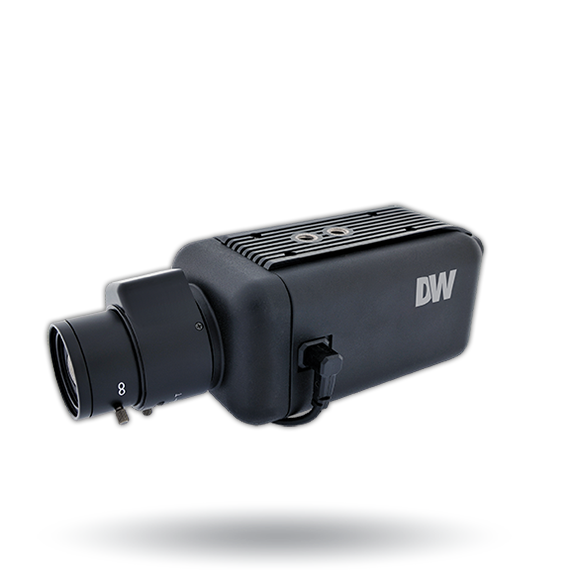

DWC-C223W

Star-Light Universal HD Series, Box Camera, 1/3" 2.1MP CMOS Sensor, CS Mount, 1920x1080 resolution, AHD,CVI,TVI,960H, True Wide Dynamic Range (100dB), True Day/Night with IR Cut Filter, Smart 3D-DNR, OSD Control via UTC, Dual Voltage. 5 Year Warranty Note: lens not included
Features
  • Real-Time 1080p Video Records full HD video at 30fps using a 2.1MP CMOS sensor for smooth, high-quality footage.
  • Universal HD Compatibility Supports HD-Analog, HD-TVI, HD-CVI, and analog to 960H, making it easy to upgrade legacy systems without replacing existing coaxial infrastructure.
  • STAR-LIGHT™ Low-Light Technology Delivers crisp, clear images in extremely low-light conditions, ideal for 24/7 surveillance in dim environments.
  • Lens Flexibility Compatible with C/CS mount lenses, allowing users to customize the camera for specific surveillance needs
  • True Wide Dynamic Range (WDR) Captures balanced images in scenes with both bright and dark areas, ensuring visibility in high-contrast lighting
  • True Day/Night Functionality Mechanical IR cut filter ensures accurate color during the day and enhanced IR performance at night.
  • Smart DNR™ Noise Reduction Reduces digital noise while preserving image detail, resulting in cleaner and more usable video.
  • Flexible Power Options Auto-sensing 24VAC/12VDC with line lock simplifies installation and supports varied power environments.
  • NDAA Compliant Fully compliant with the National Defense Authorization Act, making it suitable for government and critical infrastructure use.
  • 5-Year Warranty Enjoy peace of mind with a robust 5-year warranty, backed by Digital Watchdog’s commitment to quality and support.

Learn about how DW
solutions can work for you

View All Markets

Universal HD over Coax® Technology

Universal HD over Coax® Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax® cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.

Star-Light™ Super Low-Light Technology

Star-Light™Technology provides crisp clear images in both color and B/W video in extremely low light conditions. It is an ideal solution for cameras that are installed in a low-light environment, and cannot rely on external lighting for image clarity. Coupled with a powerful IR built-in, Star-Light™ cameras can provide unparalleled details in total darkness.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

Specifications

Active Pixels 1944 (H) x 1092 (V)
Frequency 50Hz
60Hz
Image sensor 2.1MP/1080p 1/3" CMOS sensor
Maximum resolution 2.1MP/1080p
Minimum Scene Illumination in color 0.20 lux (color)
Scanning System Progressive scan
Signal technology CVBS up to 960H
HD-Analog
HD-CVI
HD-TVI
Universal HD over Coax® technology
Lens
Focal Length NA
Horizontal Field of View (HFOV) NA
Lens Type C/CS Mount Lens Compatible
I/O
I/O Alarm in/out 1 output
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Backlight compensation (BLC) Yes
Camera Control Pelco C
Pelco D
Day and night Auto day/night
Day (color)
Night (B/W)
De-fog Yes
DRC Yes
Gamma 0.45 ~ 0.75
Mirror/flip Yes
Motion Detection Yes
Privacy Zones 16 programmable privacy masks
Sharpness Yes
Shutter Mode Anti-Flicker
Auto
Manual
Shutter Speed 1/30 ~ 1/30000
Star-Light (sense up) Off
x2-x32
White Balance Yes
Wide Dynamic Range (WDR) True WDR 100dB
Environmental
Compliance CE  FCC  NDAA Comp
Environmental Operating Humidity 10-90% (non-condensing)
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mechanical
Camera Dimensions (H X W X D) 4.71" x 2.31" x 2.44" (119.7 x 58.8 x 62mm)
Camera Weight 0.70 lbs (0.32kg)
Housing Box
Materials Aluminum die-casting
Electrical
Power Consumption "AC24V: 2.4W, 100m A"
DC12V (no LED): 2.45W, 204.16mA
Power Requirements 24 V AC
General
Warranty 5 Year Warranty
